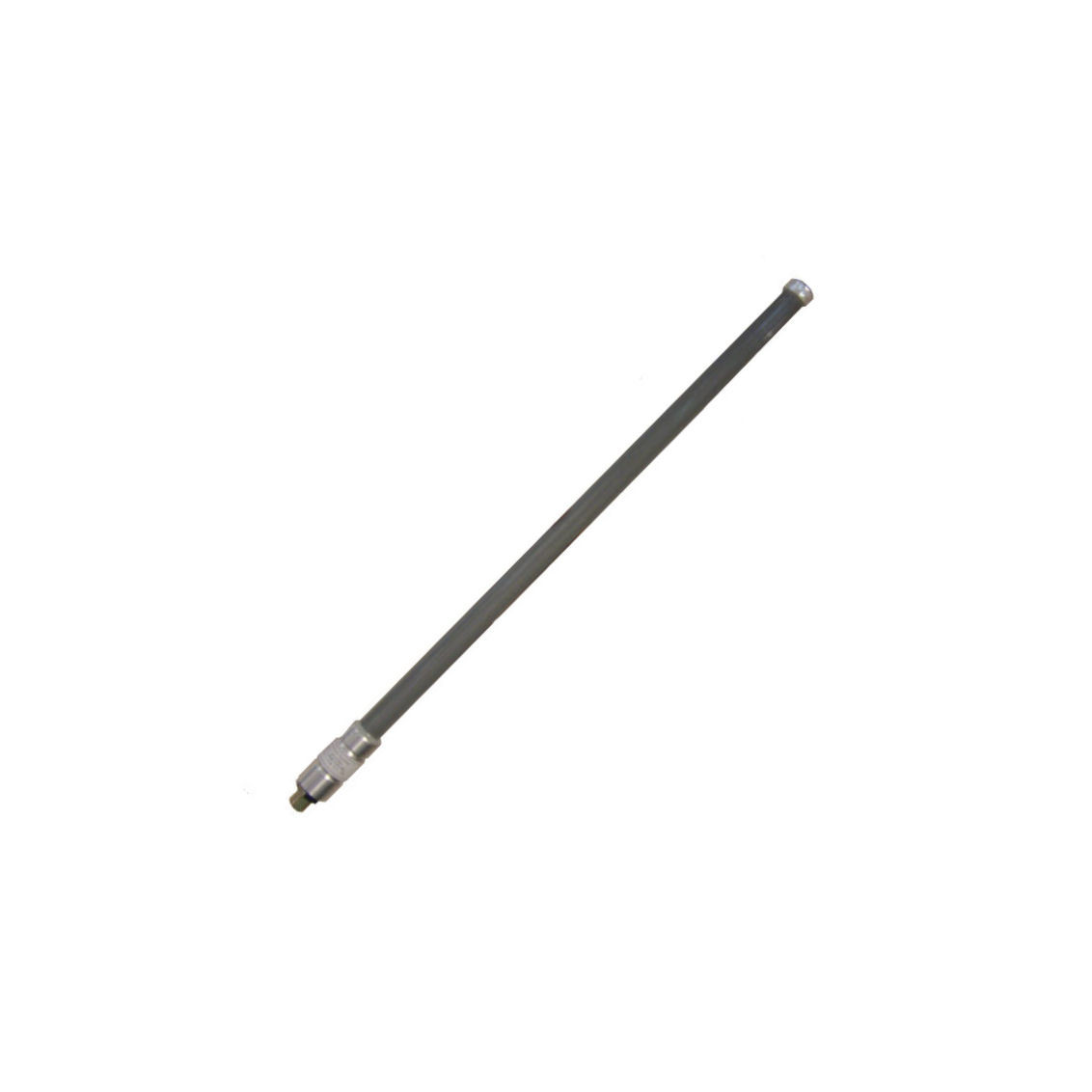

The ANT-SL08ON is an 8dB outdoor omni-directional 2.4GHz antenna, capable of broadcasting a strong WiFi signal across a wide external area.
This antenna is 49cm in length, meaning it requires a lot of space and is fitted with an N-type socket connector; it's generally used with external WiFi equipment, such as wireless Access Points, and its high quality fibreglass construction means it can be used in bad weather conditions without worries of the performance being degraded.
| Frequency Range | 2400~2485 MHz |
|---|---|
| VSWR | ≤1.5 |
| Gain | 8 ± 0.5 dBi |
| Rated power | 50W |
| Polarisation | Vertical Polarisation |
| Beam Width(1/2 Power Points | 16° |
| Electrical Down-tilt | 0° |
| Rated Wind Velocity | 60m/s |
| Input Impedance | 50Ω |
| Lightning Protection | Direct Ground |
| Connector Type | N-Socket |
| Length | ≤0.5m |
| Weight | 300g |
| Element Housing Material | Fiberglass |
| Diameter of knighthead | Φ25~Φ50(mm) |
| Ambient temperature | -40℃~+60℃ |
| Ambient humidity | 5%~95% |
